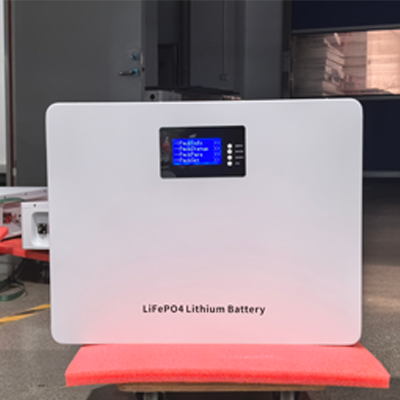

1. Product Overview & Key Features
This wall-mounted 25.6V 100Ah LiFePO4 Battery System delivers safe, compact, and high-efficiency energy storage for residential solar systems, off-grid cabins, telecom base stations, and emergency backup power. Featuring ultra-reliable prismatic lithium iron phosphate cells and a heavy-duty smart Battery Management System (BMS), it ensures maximum thermal and chemical stability.
-
Integrated Smart BMS Protection: Real-time multi-level protection against over-charge, over-discharge, over-current, short circuit, and extreme temperatures.
-
Intelligent LCD Screen: Real-time operational visibility showing voltage, remaining capacity percentage (SOC), current, and error alarms.
-
Flexible Wall-Mount Design: Space-saving footprint designed for seamless indoor installation and easy modular expansion in parallel.
-
Wide Inverter Interoperability: Pre-configured communication protocols for plug-and-play integration with major inverter brands.
2. Technical Specifications
| Parameter | Technical Specification |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Configuration | 8S1P (Prismatic Cells) |
| Nominal Voltage | 25.6 V |
| Nominal Capacity | 100 Ah |
| Total Energy | 2,560 Wh (2.56 kWh) |
| Standard Charge Voltage | 29.2 V |
| Discharge Cut-off Voltage | 21.6 V – 22.4 V |
| Standard Charge / Discharge Current | 50 A (0.5C) |
| Max Continuous Discharge Current | 100 A (1.0C) |
| Peak Discharge Current | 150 A (3–5 seconds) |
| Cycle Life | ≥ 6,000 Cycles @ 80% DoD (25°C) |
| Communication Protocol | RS485 / CAN / RS232 |
| Display Interface | HD LCD Status Display Screen |
| Parallel Scalability | Up to 15 units in parallel |
| Operating Temperature | Charge: 0°C ~ 55°C / Discharge: -20°C ~ 60°C |
| Protection Rating | IP54 / Indoor Wall Mount |
| Certifications Compliance | UN38.3, MSDS, CE, RoHS |
3. OEM / ODM & B2B Customization Services
-
Brand Customization: Silk-screen / Laser-engraved logo, custom front casing color, branded startup display screen.
-
Protocol & Inverter Matching: Firmware customization to match your specific local inverter brand protocols.
-
Export Packaging: Standard UN-certified heavy-duty cartons with shockproof pearl foam and wooden pallet packaging for international shipping.
Need a Custom Quote or Technical Support?
Connect directly with our sales engineering team via WhatsApp for wholesale pricing and OEM/ODM options.
