Integrated All-in-One Design: 3.6kW pure sine wave inverter paired with a 5.12kWh (25.6V 200Ah) LiFePO4 battery pack.
-
High-Efficiency PV Input: Max 5,000W PV input with wide MPPT range (40V–450Vdc, up to 500Voc).
-
Exceptional Cycle Life: Premium lithium iron phosphate cells delivering 8,000 cycles @ 70% DoD.
-
Multi-Source Power Management: Seamless automatic switching across Solar, Grid/Utility, Generator, and Battery modes.
-
Smart Monitoring & Operation: Multifunctional LCD status screen with optional WiFi/RS485/CAN remote app connectivity.
-
B2B Supply Terms: Direct factory pricing | OEM/ODM custom branding & casing | Global freight forwarding & DDP logistics support.
Product Long Description
(Displayed below the main product area)

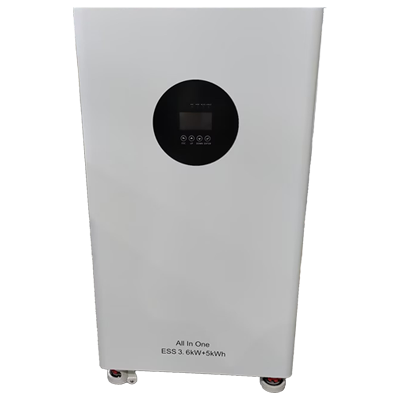

1. Product Overview & Key Advantages The 3.6kW / 5kWh All-in-One Energy Storage System (ESS) combines a high-voltage solar MPPT charger, high-capacity lithium storage, and a pure sine wave inverter into a single, mobile floor-standing unit. Engineered for residential backup, micro-grids, and off-grid setups, this plug-and-play unit simplifies installation while offering multi-source priority routing (Solar/Grid/Battery).
-

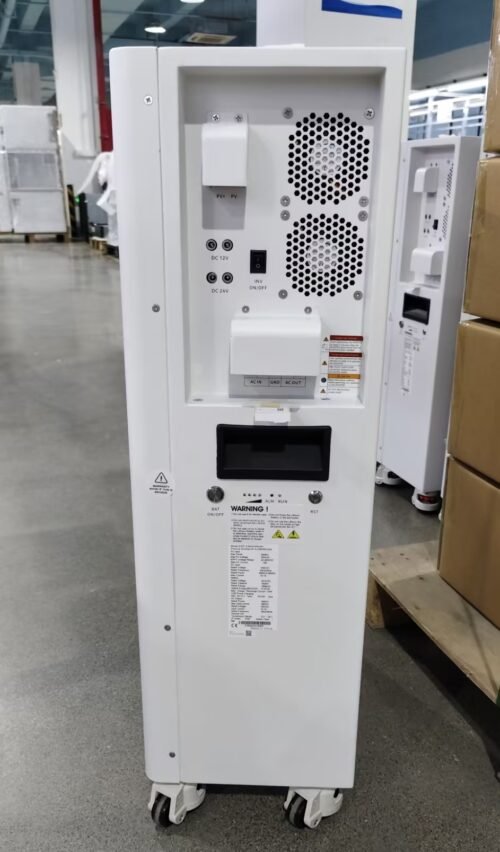

Plug-and-Play Integration: Eliminates complex external wiring between inverter and battery, equipped with heavy-duty caster wheels for flexible indoor placement.
-
High Solar Utilization: Handles up to 5,000W solar panel arrays with 99.5% MPPT tracking efficiency.
-
Intelligent BMS & Protection: Active equalization, high-precision voltage sampling, low-power hibernation, overload bypass, and reverse polarity protections.
-
Configurable Working Modes: Easily adjust output source priorities (Solar First, Grid First, or Solar/Battery/Grid priority) and charging limits directly via the front LCD panel.
2. Technical Specifications
| System Parameter | Specification Value |
| System Rating | |
|
Inverter 3.6kW + Battery 5kWh |
|
| Continuous AC Output Power |
Rated: 3000W (Max AC Output: 3600W) |
| Nominal Output Voltage |
230Vac (Configurable: 208 / 220 / 230 / 240Vac) |
| Output Frequency & Waveform |
50Hz / 60Hz; Pure Sine Wave |
| Battery Chemistry & Configuration |
LiFePO4 (1P8S Prismatic Cells) |
| Battery Nominal Voltage & Capacity |
25.6Vdc / 200Ah (5,120Wh total energy) |
| Battery Operating Voltage Range |
20.0Vdc ~ 29.2Vdc |
| Battery Cycle Life |
8,000 Cycles @ 70% DoD |
| Max PV Input Power |
5,000 W |
| MPPT Voltage Range |
40Vdc ~ 450Vdc (Max Voc: 500Vdc / Start-up: 60Vdc) |
| Max Total Charging Current |
100A (AC Charging max 80A / PV max 100A) |
| Operating Temperature |
Charge: 0°C ~ 55°C / Discharge: -20°C ~ 55°C |
| Protection Rating & Noise |
IP20 (Indoor use) / < 60dB |
| Dimensions & Weight |
450 × 831 × 246 mm / Net Weight: 62 kg |
| Communication Ports |
RS485 / CAN / WiFi (Optional) |
3. OEM / ODM & Commercial Customization
-
Branding & Enclosure: Front panel logo silk screening, customized chassis paint finishes, and custom UI boot screens.
-
Firmware Protocols: Tailored CAN/RS485 protocol adaptations and remote monitoring app configurations.
-

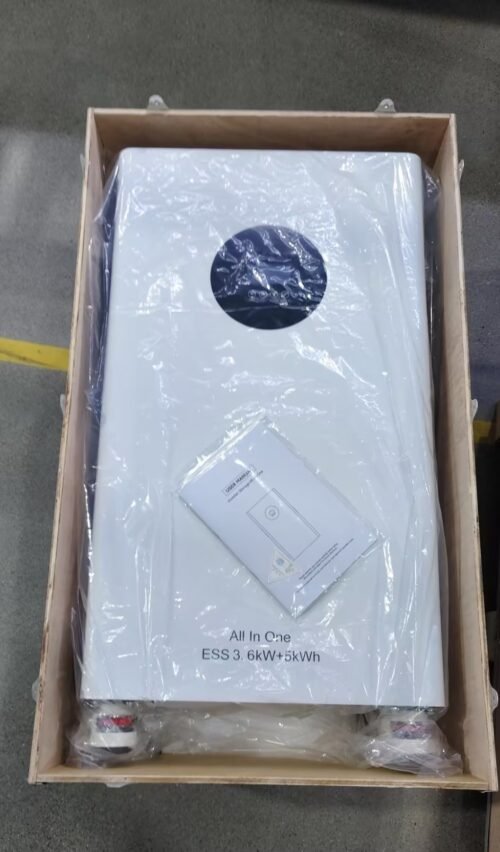

Export Palletization: UN-certified drop-tested export packaging with shock-absorbing foam and pallet reinforcements.
Need a Custom Quote or Technical Support?
Connect directly with our sales engineering team via WhatsApp for wholesale pricing and OEM/ODM options.
