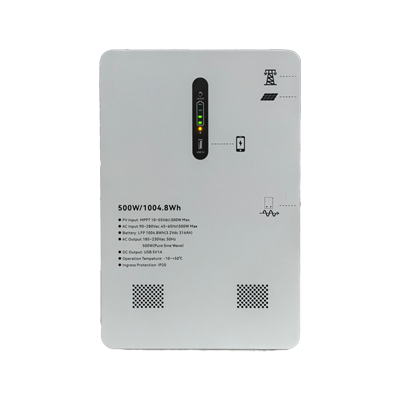

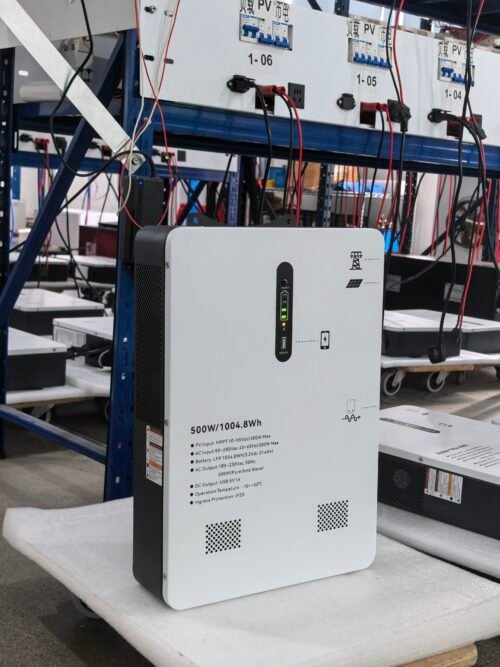

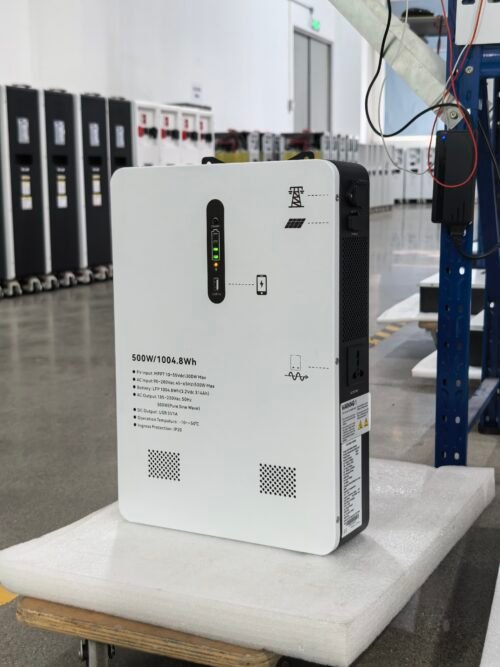

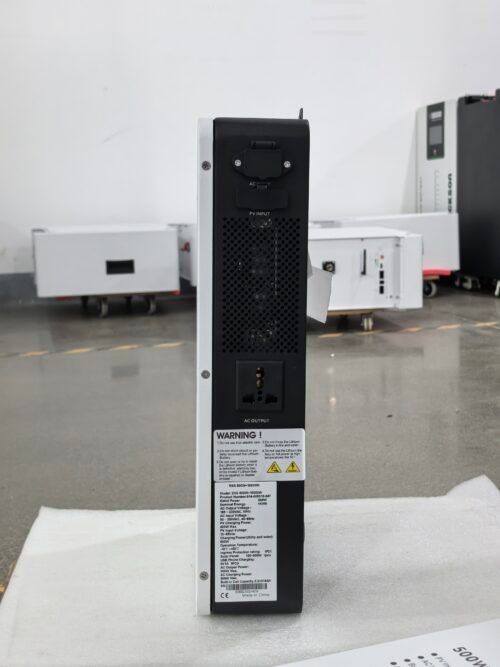

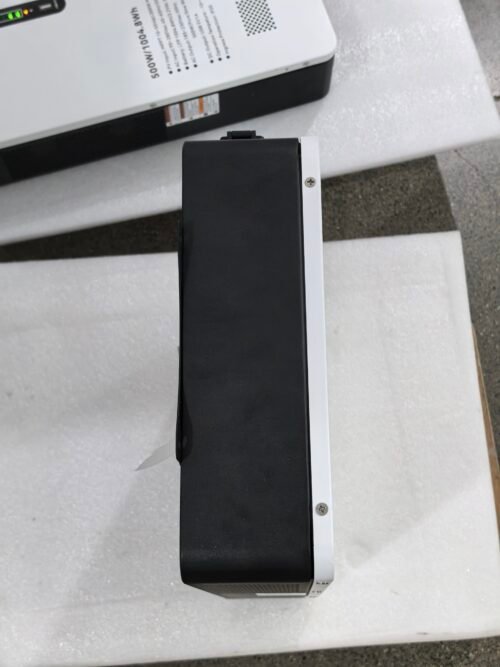

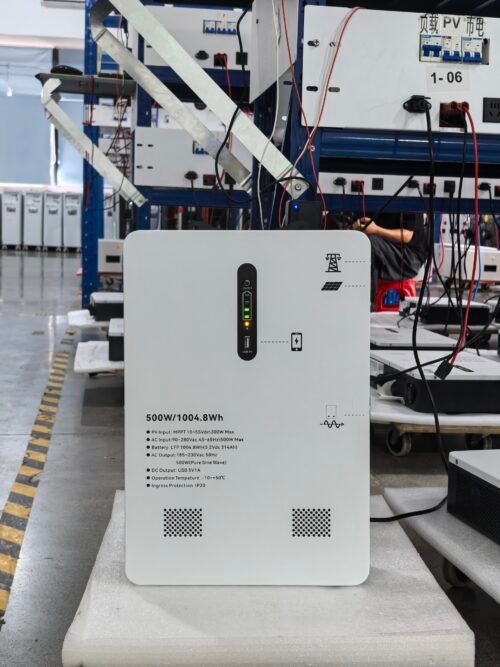

1. Product Overview & Key Advantages The ESS 500W / 1004.8Wh Wall-Mounted Energy Storage System is an ultra-compact, all-in-one power solution engineered for residential backup, apartment lighting, desktop workstation power, and light off-grid applications. By packaging a pure sine wave inverter, smart MPPT solar charger, grid charger, and a high-capacity 3.2V 314Ah LiFePO4 battery into a slim wall-mountable chassis, it delivers immediate plug-and-play backup power without complex external wiring.
- Space-Saving Wall-Mount Architecture: Featuring a slim 420 × 290 × 90 mm profile and weighing only 11.0 kg, it mounts securely on indoor walls without occupying valuable living space.
- Reliable Cell Longevity & Safety: Equipped with heavy-duty prismatic LiFePO4 chemistry rated for up to 8,000 cycles, offering comprehensive safeguards against over-charge, over-discharge, low DC voltage, and high thermal loads.
- Low Acoustic Signature: Engineered for home and office environments, maintaining a quiet operating noise level below 40dB.
- Intuitive LED Status Display: Features 4-level SOC battery capacity indicators and a working status indicator on the front panel for instant system monitoring.
2. Technical Specifications
| System Parameter | Specification Details |
| Model / SKU | |
|
ESS 500W+1000WH (Wall-Mounted) |
|
| Rated AC Output Power |
500 W (Pure Sine Wave) |
| AC Output Voltage & Frequency |
185 ~ 230 Vac, 50 Hz |
| Nominal Battery Capacity |
1004.8 Wh (3.2 Vdc / 314 Ah) |
| Battery Chemistry & Type |
Lithium Iron Phosphate (LiFePO4) |
| Cell Cycle Life |
Up to 8,000 Cycles |
| Battery Operating Voltage Range |
2.9 Vdc ~ 3.6 Vdc (Low DC Cut-off: 2.9Vdc) |
| Max Charge / Discharge Current |
130 A / 130 A |
| Solar Charger Type |
MPPT Controller |
| Max Solar PV Input Power |
300 W Max. |
| PV MPPT Operating Voltage Range |
10 Vdc ~ 55 Vdc (Nominal: 30Vdc / Max Voc: 56Vdc) |
| AC Nominal Input Voltage & Range |
230 Vac (90 ~ 280 Vac, 45~65Hz) |
| Max AC Charging Power |
500 W Max. |
| DC Output Interface |
1 × USB Charger Port (5V / 1A, 5W Max.) |
| Operating Noise & Temperature |
< 40 dB(A) @ 1 meter / -10°C ~ +50°C |
| Dimensions (L × W × H) |
Product: 420 × 290 × 90 mm / Package: 486 × 326 × 146 mm |
| Net Weight / Gross Weight |
NW: 11.0 kg / GW: 12.0 kg |
3. OEM / ODM & Commercial Customization Scope
- Branding & Aesthetics: Custom silk-screen logos, custom enclosure powder coating/finishes, and private-label packaging boxes.
-
AC Output Interface: Configurable socket types including EU Schuko, UK standard, US plug, or Universal AC outlets.
-
Packaging & Freight: Drop-test compliant reinforced export cartons with fitted shock-absorbing foam padding for safe international sea and air freight.
