Product Description

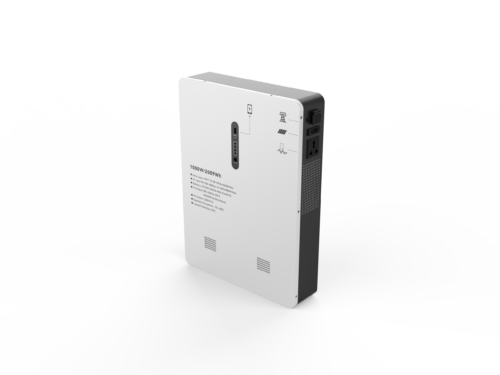

Introduce reliable and safe energy independence into your home or office with the Wall-Mounted All-in-One ESS (1000W / 2009.6Wh). Designed for unattended operation and all-around protection, this compact wall-mounted unit integrates solar input, utility charging, and an advanced lithium iron phosphate battery system into a single streamlined enclosure.
Key Features & Advantages
- Space-Saving Wall-Mounted Design: Sleek vertical profile mounts easily on walls, freeing up valuable floor space while maintaining a clean, modern aesthetic.
- 1000W Pure Sine Wave Output: Delivers stable 185~230VAC pure sine wave power, ensuring safe and smooth operation for sensitive electronics and household appliances.
- High-Efficiency Solar & Utility Charging: Supports up to 800W max combined charging power (utility and solar together) with an integrated MPPT solar charge controller.
- Ultra-Long Life LiFePO4 Chemistry: Built with premium cells designed for up to 8,000 cycles, offering exceptional durability, thermal stability, and safety.
- Comprehensive Protection & Status Monitoring: Equipped with multi-level protections (overcharge, over-discharge, overcurrent, short-circuit, and over-temperature) alongside clear LED indicators and USB output.
Technical Specifications
| Model | Wall-Mounted ESS 1000W + 2009.6Wh |
|---|---|
| Rated AC Output Power | 1000W (Pure Sine Wave) |
| Battery Capacity | 2009.6Wh (314Ah nominal) |
| Max Charging Power | 800W Max (Utility and Solar together) |
| Solar Input (MPPT) Range | 13Vdc ~ 55Vdc (550W Max Solar Charging) |
| Operation Temperature | -10°C ~ +50°C |
| Product Dimensions (L×W×H) | 500 × 360 × 90 mm |
| Net Weight (N.W.) | 18.8 Kg |
Ideal Applications
Perfect for residential backup power, smart home microgrids, off-grid cabins, small offices, and telecommunication stations requiring unattended, reliable daily operation.
Need a Custom Quote or Technical Support?
Connect directly with our sales engineering team via WhatsApp for wholesale pricing and OEM/ODM options.
