Product Description

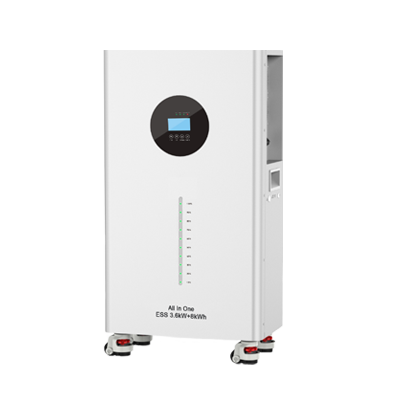

Take total control of your power supply with the All-in-One Off-Grid ESS (3.6KW / 8KWH). Designed for maximum efficiency and comprehensive protection, this compact floor-standing unit seamlessly integrates a high-performance 3.6kW inverter, a built-in MPPT solar charger, and an 8kWh lithium battery bank into a single elegant housing.
Key Features & Advantages
- All-in-One Integrated Design: Combines inverter, solar charger, and battery storage into one unit, minimizing complex wiring and installation footprints.
- 3.6kW Pure Sine Wave Output: Delivers clean, stable AC power matching grid quality, protecting your sensitive household appliances and electronics.
- Built-in MPPT Solar Charger: Supports up to 5000W PV input power with a wide operating voltage range (40~450VDC) to maximize solar energy harvesting.
- Smart WiFi & LCD Monitoring: Features a clear LCD screen alongside built-in WiFi communication, allowing you to monitor system status and performance remotely from anywhere.
- High Usable Energy & Safety: Provides 8kWh nominal energy (7.2kWh usable at 90% DOD) backed by multi-level overload and environmental protections.
Technical Specifications
| Model | ESS 3.6KW + 8KWH All-in-One System |
|---|---|
| Rated AC Output Power | 3.6 kW (Pure Sine Wave) |
| Rated Energy / Usable Energy | 8kWh / 7.2kWh (90% DOD) |
| Nominal Battery Voltage | 25.6 VDC |
| Max. PV Input Power / Current | 5000W / 18A (MPPT Range: 40~450VDC) |
| Monitoring & Communication | WiFi Monitoring, LCD Display, USB |
| Product Dimensions (L×W×H) | 440 × 246 × 760 mm |
| Net Weight (N.W.) | 73 kg |
Ideal Applications
Perfect for off-grid homes, remote cabins, rural residential backup, and small-scale commercial or agricultural energy storage setups requiring reliable autonomous power.
Need a Custom Quote or Technical Support?
Connect directly with our sales engineering team via WhatsApp for wholesale pricing and OEM/ODM options.
